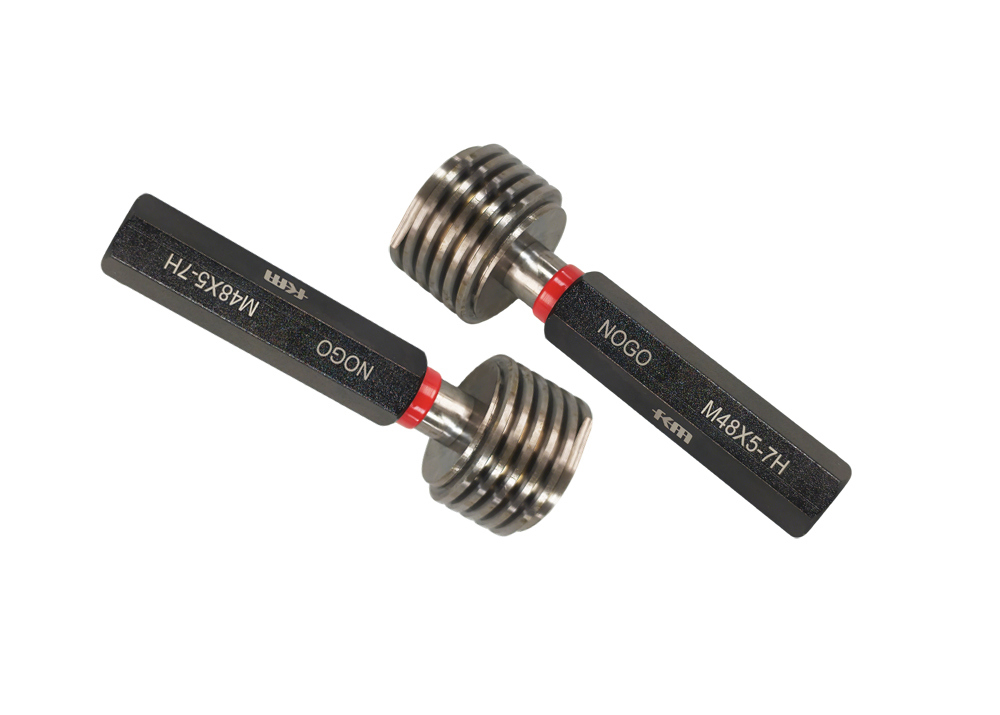

Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
-
Επισημαίνω
7H Thread Plug Gauge M48X5
,NOGO Type Thread Plug Gauge M48X5
,Precision Thread Plug Gauge M48X5
-
ΕγγύησηΈνα χρόνο
-
ΤύποςΜετρικό μετρητή βύσματος νήματος
-
ΥλικόΧάλυβας εργαλείων
-
Συμμορφωθείτε με το ΠρότυποDIN13
-
Προδιαγραφές νήματοςM48X5-7H NOGO
-
Ακρίβεια5g,5h, 6g,6h,7g,7h κ.λπ
-
Χρήσηγια εργασία και επιθεώρηση
-
Αντικείμενο μέτρησηςΕλέγξτε τις τρύπες με σπείρωμα ή χτύπημα, κ.λπ
-
ΠακέτοΚουτί ABS
-
Τόπος καταγωγήςShaanxi, Κίνα
-
ΜάρκαKM
-
ΠιστοποίησηISO DIN GB RoHS
-
Αριθμό μοντέλουKM-P480-500-7H-NG
-

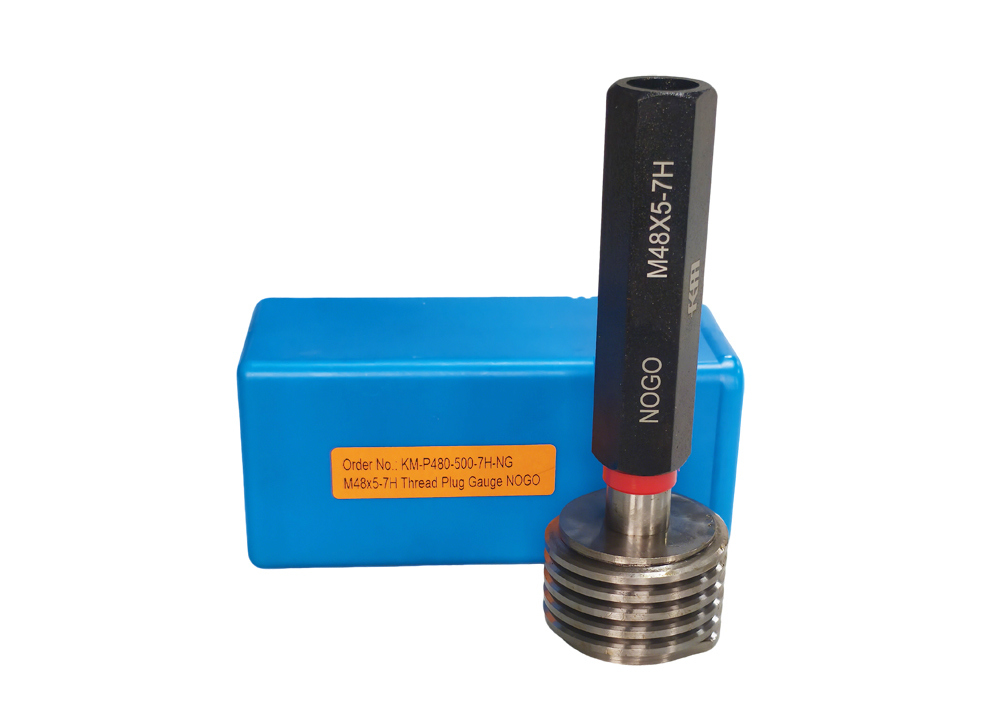

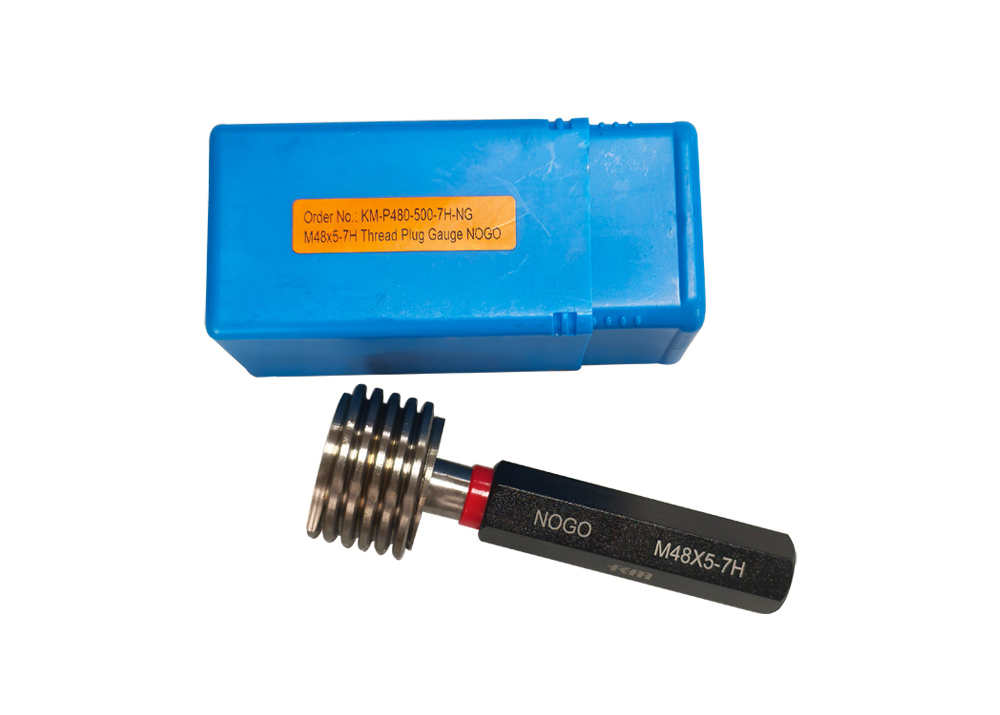

Συσκευασία λεπτομέρειεςABS Box 15*4.5*4.5cm/κομμάτι 0.36kg/κομμάτι
-
Χρόνος παράδοσηςΕντός 15 ημερών
-
Όροι πληρωμήςT/T, L/C, D/P, D/A, Western Union, Paypal, MoneyGram
-
Δυνατότητα προσφοράς50000 τεμάχια/μήνα
Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
Metric Thread Plug Gauge M48X5 7H NOGO Type Precision Measuring Tool
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Key Features
- Metric thread plug gauge with high precision measurement
- Available in various accuracy grades: 5g, 5h, 6g, 6h, 7g, 7h
- Multiple types available: GO, NOGO, and combination GO/NOGO
- Conforms to DIN13 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
Thread plug gauges are essential for inspecting thread dimensions in various industries including automotive manufacturing, aerospace, machining, and electronic processing. They help ensure thread accuracy and improve product quality control.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust.
- Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails.
- Regularly inspect for damage, rust, or deformation.
- For rust prevention, soak in gasoline, wipe carefully, and apply anti-rust oil.
- Never store working surfaces of two gauges together to prevent adhesion.
- Clean thoroughly after use and store in dry conditions.
Packing & Shipping
Manufacturer Information
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Frequently Asked Questions
Product Range: We carry dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
Warranty: All products come with one year warranty. Defective parts will be replaced promptly.
